Specifications and Improvements for the Hawk Precision Scroll Saw
SPECIFICATIONS
Throat Capacity
Maximum Cutting Thickness
Cutting Strokes per Minute
Work Table

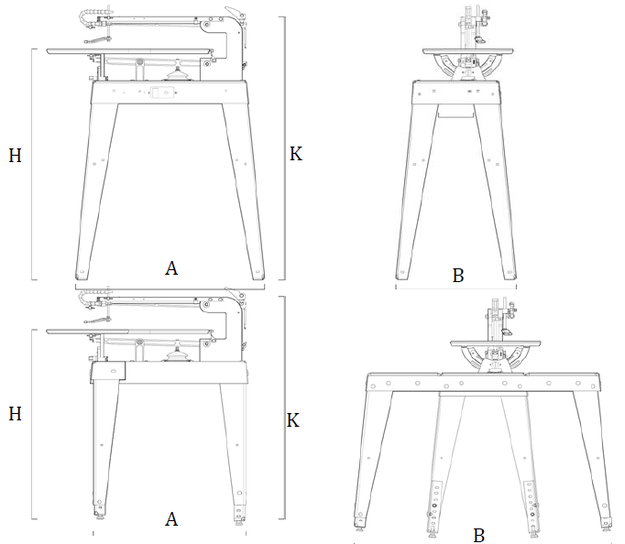

Dimension H Cutting Table Height
Standard Legs
Standard Legs w/Extensions
Chair Legs
Dimension K Overall Height
Standard Legs
Standard Legs w/Extensions
Chair Legs
Dimension A
Standard Legs
Chair Legs
Dimension B
Standard Legs
Chair Legs
Maximum Forward Tilt
(extension on back legs only)
Table Over Hang
Motor
Mounting
Weight
Floor Space Requirements
Manufacturer's Warranty
Shipping Dimensions
Box # 1 Saw
Box # 2 Standard Legs
Box # 2 Chair Legs
BM-20
20"
2 1/2"
100-1750
13 1/2"
39"
43 1/2"
31" to 38"
47
51 1/2"
39" to 46"
29"
29"
19"
41"
15 Degrees
7"
DC TENV
10 Gauge Steel Legs
93 Pounds
19 1/2" x 33"
1 Year
41" x 21" x 20" 96#
5" x 5" x 36" 30#
6" x 6" x 36" 38#
BM-26
26"
2 1/12"
100-1750
13 1/2"
39"
43 1/2"
31" to 38"
47"
51 1/2"
39" to 46"
35"
35"
19"
41"
12 Degrees
7"
DC TENV
10 Gauge Steel Legs
97 Pounds
19 1/2" x 39"
1 Year
41" x 21" x 20" 105#
5" x 5" x 36" 30#
6" x 6" x 36" 38#
BM - Series Improvements
Both Models have Adjustable Noses on the lower arm. Like the G4 and Junior HAWK, the tilt of the blade is infinitely adjustable rather than the two position tilt that the ULTRA series carried.
Upper Arm is 38% lighter and is stronger vertically.
Lower Arm is 34% lighter and is stronger vertically.
Pitman Arm (the one that connects the motor to the lower arm) is 78% lighter.
The Motor Bearing Block has now been integrated into a new custom motor.
We have replaced the flywheel of the older motors with a custom Counter Weight specific to the saw model.
All of these changes to the mother have allowed us to increase the range of the motor from the previous standard, 250-1650spm, to a broader 100-1750 strokes per minute while still allowing us to further reduce the vibration.
